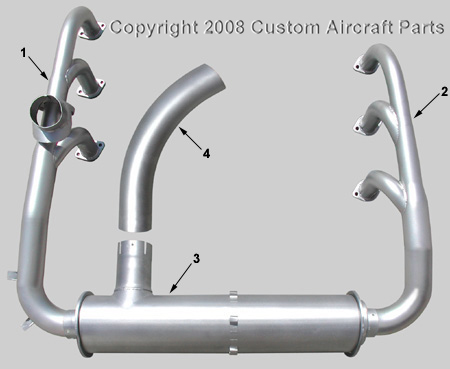

Item # |
Part # |
Description |
|
1 |
23537-002 |
Right Hand Stack Cyl #1,3,5 ''Short Carb. Heat provision'' |
|
1* |
21664-03 |
Right Hand Stack Cyl #1,3,5 ''Long Carb Heat provision'' |
|
1* |
23537-03 |
Right Hand Stack Cyl #1,3,5 (FUEL INJECTED ENGINE NO HEAT PROVISION) |
|
2 |
21664-02 |
Left Hand Stack Cyl #2,4,6 |
|
3 |
26385-00 |
Muffler (NO internal Baffle) |
|
4 |
21580-000 |
Tailpipe |
|
5* |
23489-002 |
Muffler Shroud |
|
6* |
23504-00 |
Muffler Shroud |
|
7* |
756-777 |
Carb. Heat Shroud Upper & Lower RH Stack p/n 21664-03 |
|
8* |
756-778 |
Carb. Heat Shroud Upper & Lower RH Stack p/n 23537-002 |
|
9* |
14235-08 |
Muffler Pin Clamp |
|
10* |
21167-00 |
Tailpipe Clamp |
|
11* |
21247-00 |
Shroud Rail |
|
12* |
2-Hole Lycoming 77611 |
Exhaust Gasket |
* Item not shown
AD68-05-01 Exhaust systems with less than 950 HR TT PSI test muffler and check stacks for cracks
Every 50 Hour interval
Use 10 PSI for all leak testing
Exhaust systems with 950 HRS TT & up perform same tests every 50 Hour interval
AD not required when hollow muffler is installed
Service letter 414 must be implemented when muffler #24506-00 is used
Service Letter 481 MUST BE COMPLIED WITH
