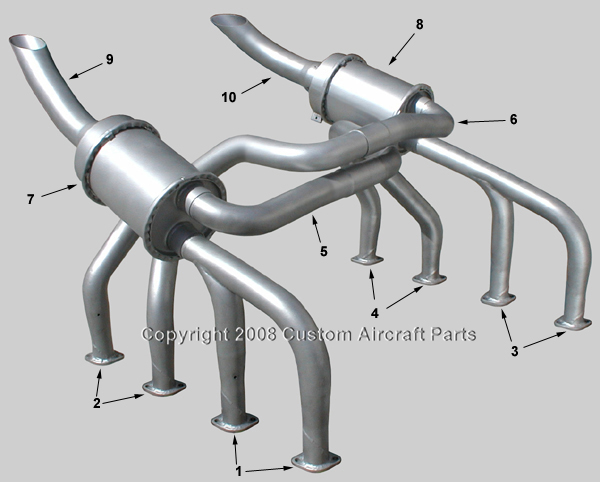

Item # |
Part # |
Description |
|
1 |
23500-12 |
Stack Assembly Left Front Cylinder 2,4 |
|
2 |
23500-14 |
Stack Assembly Left Rear Cylinder 6,8 |
|
3 |
23500-13 |
Stack Assembly Right Front Cylinder 1,3 |
|
4 |
23500-15 |
Stack Assembly Right Rear Cylinder 5,7 |
|
5 |
23500-10 |
Tube Crossover Left |
|
6 |
23500-11 |
Tube Crossover Right |
|
7 |
24484-00 |
Muffler Left Hand |
|
8 |
24484-01 |
Muffler Right Hand |
|
9 |
24512-00 |
Tailpipe Left Hand |
|
10 |
24513-00 |
Tailpipe Right Hand |
|
11* |
24280-00 |
Muffler Shroud Assembly Left |
|
12* |
24281-00 |
Muffler Shroud Assembly Right |
|
13* |
24279-00 |
Shroud Rail |
|
14* |
21167-03 |
Tailpipe Clamp |
|
15* |
24269-00 |
Clamp Assembly Exhaust Stack |
|
16* |
23499-00 |
Clamp Exhaust Stack |
|
17* |
23501-00 |
Spacer Exhaust Stack Clamp |
|
18* |
61402-72 |
Bushing Support Tube Spacer |
|
19* |
24515-00 |
Tube Right Muffler Support |
|
20* |
24516-00 |
Tube Right Muffler Support |
|
21* |
24517-00 |
Tube Left Muffler Support |
|
22* |
24518-00 |
Tube Left Muffler Support |
|
23* |
80002-79 |
Clamp Muffler Support Tube |
|
24* |
14235-12 |
Clamp Muffler Support Tube |
|
25* |
24996-02 |
Clamp Muffler Support Tube Left |
|
26* |
24996-03 |
Clamp Muffler Support Tube Right |
|
27* |
24996-04 |
Clamp Muffler Support Tube Left |
|
28* |
24996-05 |
Clamp Muffler Support Tube Right |
|
29* |
2-Hole Lycoming 77611 |
Exhaust Gasket |
*Items Not Shown
